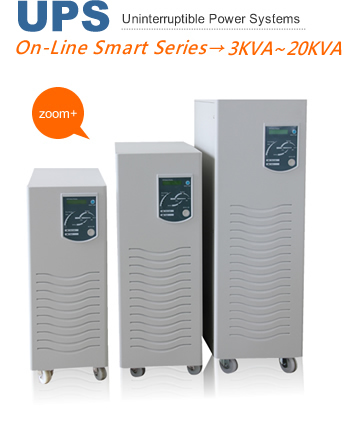

On-Line Smart Series | NEWSEED ELECTRONICS CO., LTD

AVR

UPS

OTHERS

TEL:05-5873238
skype: newseed66
newseed@ms15.hinet.net
newseed.ups@msa.hinet.net

QR code

Products

Specification

Model	LED Display LED+LCD Display	NS-302 NS-302S	NS-352 NS-305S	NS-602 NS-602S
	Capacity	3KVA 2.4KW	3.5KVA 2.8KW	6KVA 4.8KW
Input	Voltage	115V or 230V±25％
	Frequency	50 or 60HZ±5%
	Phase	1Φ2ω+G
Output	Voltage	100V,110V,115V,120V or 200V,220V,230V,240V
	Frequency Stability	±0.5%(Free running)
	Voltage Regulation	＜±1％(±2％with ISO transformer)
	Transient Response	<±5% ( 100% load change)
	THD	<3%(Linear Load)
	Wave form	Sine-Wave
	Overload Capacity	105% ~150% for 30 seconds,>150% for 10 cycle
	Crest Factor	3：1
	Transfer Time	Zero-cross transfer,<2 ms. UPS to bypass or reverse
	Efficiency	≧83%
Battery	Battery Type	Lead acid maintenance-free battery
	Battery Voltage	192V
	Back up Time(PF=0.7)	8 mins	6 mins	6 mins
	Recharge Time	5 hours to 90%		8 hours to 90%
Interface	Communication	RS232(LED+LCD Display)/Dry Contact (LED Display)or AS 400(option)
Indicator	LED	line(green),inverter(green),bypass(orange), battery(green),fault(red),overload(orange), over charge(orange),battery level(5 LED indicators)
	LCD	System operating status display, input/output voltage, frequency, output loading %, battery voltage, temperature ℃
Audible alarm	Utility Power fail	Beeping every 4 seconds approx. 2 minutes auto alarm reset
	Low Battery	Rapid beeping every second as battery approaches final discharge
	Fault, Over Charge	Continuous
	Overload	Beeping 2 seconds on every other second
Appearance	Dimension(W×D×H)	240×585×638 mm		265×634×735 mm
	Weight(kgs)/With ISO	75/96	76/99	115/150
Enviroment	Audible Noise	<50dB
	Operating Temperature	0℃〜40℃
	Safety Standard	CE,FCC
	Humidity	0%~90%(non-condensing)

Model	LED Display LED+LCD Display	NS-802 NS-802S	NS-103 NS-103S	NS-123 NS-123S	NS-153 NS-153S	NS-203 NS-203S
	Capacity	8KVA 6.4KW	10KVA 8KW	12KVA 9.6KW	15KVA 12KW	20KVA 16KW
Input	Voltage	230V or 380V±25％
	Frequency	50 or 60HZ±5%
	Phase	1Φ2ω+G or 3Φ3ω+G or 3Φ4ω+G
Output	Voltage	100V,110V,115V,120V or 200V,220V,230V,240V
	Frequency Stability	±0.5%(Free running)
	Voltage Regulation	<±1％(±2％with ISO Transformer)
	Transient Response	<±5% ( 100% load change)
	THD	<3%(Linear Load)
	Wave form	Sine-Wave
	Overload Capacity	105% ~150% for 30 seconds,>150% for 10 cycle
	Crest Factor	3：1
	Transfer Time	Zero-cross transfer,<2 ms. UPS to bypass or reverse
	Efficiency	≧83%
Battery	Battery Type	Lead acid maintenance-free battery
	Battery Voltage	192V
	Back up Time(PF=0.7)	5 mins	4 mins	6 mins	9 mins	5 mins
	Recharge Time	8 hours to 90%
Interface	Communication	RS232(LED+LCD Display)/Dry Contact (LED Display)or AS 400(option)
Indicator	LED	line(green),inverter(green),bypass(orange), battery(green),fault(red),overload(orange), over charge(orange),battery level(5 LED indicators)
	LCD	System operating status display, input/output voltage, frequency, output loading %, battery voltage, temperature ℃
Audible alarm	Utility Power fail	Beeping every 4 seconds approx. 2 minutes auto alarm reset
	Low Battery	Rapid beeping every second as battery approaches final discharge
	Fault, Over Charge	Continuous
	Overload	Beeping 2 seconds on every other second
Appearance	Dimension(W×D×H)	265×634×735	285×670×895	353×930×1017
	Weight(kgs)/With ISO	124/165	148/200	233/291	297/371	305/390
Enviroment	Audible Noise	<50dB	<60dB
	Operating Temperature	0℃〜40℃
	Safety Standard	CE,FCC
	Humidity	0%~90%(non-condensing)

◢Feature

▪	In low frequency isolated transformer design, safe and reliable Inverter adopts low frequency isolation transformer design where inverter and output are totally isolated and can attain excellent protecting effect over the lighting strike, surge, interference from input end.	▪	LED and LCD dual display, giving full picture of the conditions LED can display system status, battery level and failure indicating. LCD can display input voltage, output voltage, frequency, battery voltage, output load level, output battery level, internal temperature that give you full information of UPS status.
▪	Inverter adopts full bridge structure and is suitable for all kinds of load Full bridge structure is more costly but has wide application and reliability is the highest, too.	▪	Multiple audio warning functions When UPS is with problem, other than light Indicator and LCD display, there are different buzzers giving different audio warning.
▪	Rectifier and IGBT are module packed IGBT is module sealed and is capable of sustaining large current transiently and is fast in heat radiation. It is sturdy and durable.	▪	Low distortion sine wave output With perfect sine wave and harmonic wave distortion at 0 – 100% linear load less than 3%.
▪	Battery capacity can be expanded for long time discharge In additional standard unit equipped battery, the product can be connected to large capacity battery for long time discharge and can fit with large current charging board to short battery recharging time.	▪	Can be started with battery and auto-restart when mains resumed When UPS off and power is supplied by internal battery, UPS will be off automatically when battery energy is Exhausted. And when mains is resumed, UPS will re-start automatically .
▪	Output voltage can be adjusted for 10% Output voltage of standard unit can be adjusted 10% and custom ordered special voltage can be entertained.	▪	Highly stable output voltage Within allowable input voltage range, the serial product maintain less than 1% change in output.
▪	Can be used as frequency converter with also UPS function UPS output can be set to be frequency converter and still maintain the UPS function.	▪	Over heating protection At failure of cooling fan and internal temperatures is too high, the unit will turn off automatically.
▪	RS232 contact may be fitted with USB or SNMP card If fitted with monitoring software, it can monitor all kinds of situation of UPS .
