Specification

Model		NU-1200M	NU-2000M	NU-3000M	NU-4000M
Capacity	-17%～+21%	1.2KVA/960W	2KVA/1.6KW	220V: 3KVA/2.4KW 110V: 3KVA/1.8KW	220V:4KVA/3.2KW 110V:4KVA/2.4KW
	-23%～+30%	1.2KVA/720W	2KVA/1.2KW	3KVA/1.8KW	4KVA/2.4KW
Input	Normal Voltage	1Φ2W, 100/110/115/120VAC or 200/220/230/240VAC
	Voltage Range	-23%～+30%
	Frequency	47HZ~63HZ
Output	Voltage Range	≦5%
	Outlets	4 outlets		6 outlets	Terminal+ 2 outlets
		2 outlets		2 outlets	X
		2 outlets		2 outlets	X
	Efficiency	>97%(Full load)
	Overload Capacity	200% for 5 seconds
	Distortion	No Distortion(the same as input waveform)
	Power Factor	0.6~0.8

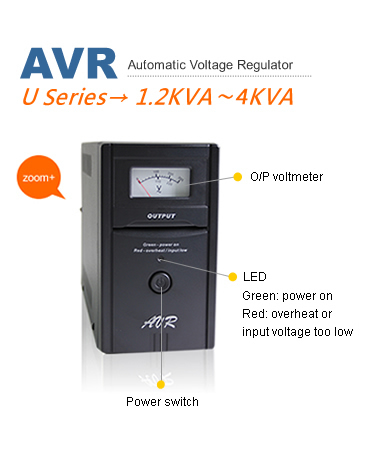

Display	LED	Yes(normal、overheat、input low)
	Output Voltmeter	Yes
Protection	Output Delay on	Yes(output delay for 4 seconds)
	Overload ,Short	Yes(Circuit Breaker)
	I/P Hi ,I/P Low	Yes(Cut-off output)
	Overheat	Yes(Cut-off output)
	Surge	Yes(4500A,8/20us)
	Zero Transfer	Yes
Environment	Operation Temp.	0℃~40℃
	Relative Humidity	0%~95%(non-condensing)
	Audible Noise	40dB(at 1 meter)
Physical	Net Weight(kgs)	3.5	4.8	5.5	5.9
	Dimension(W×D×H)	94×271×172mm

◢Feature

▪	Very wide input voltage range This series AVR can maintain ≦5% voltage stability when the input is within-23% and + 30% range.	▪	Output voltmeter indication This series AVR has analog voltmeter giving clear indication of output voltage.
▪	True RMS detecting circuit It has precise True RMS detection and is capable to maintain accurate voltage regulation when the external power supply is distorted.	▪	Lightning surge protecting device It has surge protection device and can effectively absorb 4500 A (8/20μs) and can effectively reduced the damage of thunder strike.
▪	Zero-cross transfer circuit, with longer life This series AVR owns accurate zero-cross circuit, the output is without power cut-off time while AVR is working.	▪	Multiple Indication LED Green LED light on at normal status, and red LED light on at input low voltage or overheat (same LED)
▪	Automatic start delay with good protecting effects The AVR will delay the start 4 seconds automatically when physically started and when mains is resumed after black out, it can protect your equipment from damage of transient high voltage of surge	▪	Industrial class output socket, safe and reliable Output outlets of this AVR is with industrial class outlets, solid and durable and will not melt due to overheat as ordinary injection molding products
▪	Overload and overheat dual protection The AVR has overheat protection, in addition to the overload protection, when transformer temperature is too high, it will cut-off output of AVR automatically.	▪	Dual panel design with high reliability This AVR is in dual-panel design, precisely welded. High resistance to vibration, it gives higher reliability and longer service life.
▪	Full low frequency working, no interference to your equipment The AVR is free of any high frequency transforming power circuit and won’t cause any high frequency disturbance.	▪	High efficiency, high power factor, energy conservation and environment friendly The AVR has efficiency at least 97%, and power factor is better than 0.98. it is the best green energy conservation product.
▪	Over low/ high input voltage protection When input voltage is too low, it will cut off output. When input inserted to wrong socket (such as 110V AVR inserted into 220V socket) and the voltage is too high, it will turn off internal and output power and will not damage your equipment as a result of over voltage.	▪	High power factor, compact, safe and elegant This series AVR is made of steel shell, it is good in fire protection. Compact, streamlined appearance, it occupy virtually no space.

◢Application

Office IT Equipment , Personal Computer , Wireless Communication , Information Home Appliance , Retailer POS, Work Station
