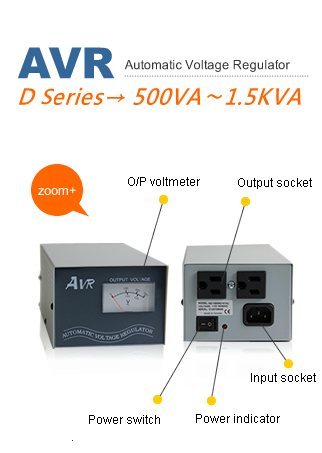

D Series UPS
- TEL:05-5873238
- skype: newseed66
- newseed@ms15.hinet.net
- newseed.ups@msa.hinet.net
QR code
Products
Specification
| Model | ND-500M | ND-1000M | ND-1500M | |
| Capacity | 500VA/400W | 1KVA/800W | 1.5KVA/1.2KW | |
| Input | Normal Voltage | 1Φ2w , 100/110/115/120VAC or 200/220/230/240VAC | ||
| Voltage Range | -14%～+14% | |||
| Frequency | 47HZ~63HZ | |||
| Output | Voltage Range | ≦6% | ||
| Outlets | Nema5-15R*2 or the other type | |||
| Efficiency | >97%(Full load) | |||
| Overload Capacity | 200% for 5 seconds | |||
| Distortion | No Distortion(the same as input waveform) | |||
| Power Factor | 0.8 | |||
| Display | LED | Yes(normal) | ||
| Output Voltmeter | Yes | |||
| Protection | Overload ,Short | Yes(Circuit Breaker) | ||
| Surge | Yes(4500A,8/20us) | |||
| Safety Standard | CE | |||
| Environment | Operation Temp. | 0℃~40℃ | ||
| Relative Humidity | 0%~95%(non-condensing) | |||
| Audible Noise | 40dB(at 1 meter) | |||
| Physical | Net Weight(kgs) | 1.6 | 2.2 | 2.4 |
| Dimension(W×D×H) | 109×210×84mm | |||
◢Feature
| ▪ | With lightning surge protection. |
▪ | Steel shell design with best fire-proof effect. |
||
| ▪ | Industrial class output outlets, safe and reliable. |
▪ | Compact and light weight, elegant appearance |
||
| ▪ | Working in full low frequency and would not Interfere your equipment. |
▪ | With overload and short circuit protection, and can resume power supply automatically when overload is removed. |
||
| ▪ | High efficiency, high power factor, energy conservation and environment friendly. |
▪ | With output voltmeter, indicating clearly. |
◢Application
Office IT Equipment , Personal Computer , Wireless Communication , Information Home Appliance, Retailer POS, Work Station
